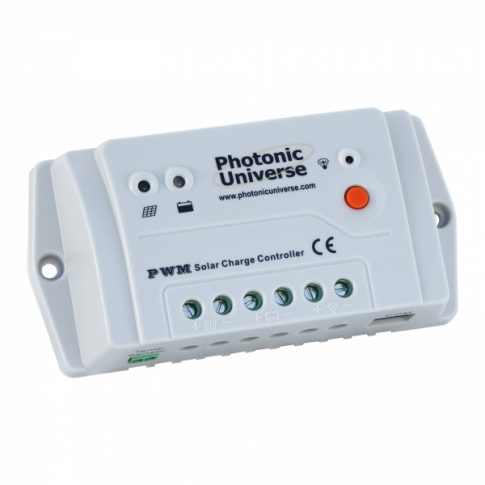

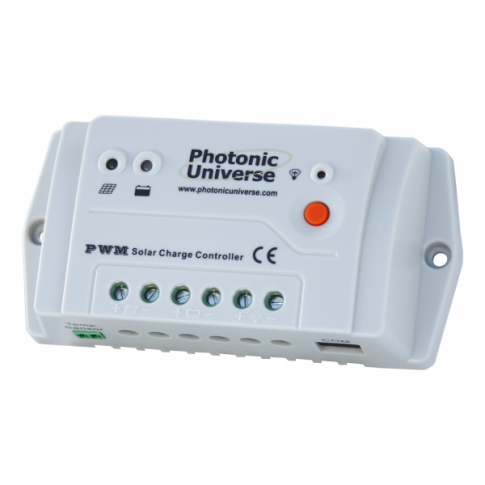

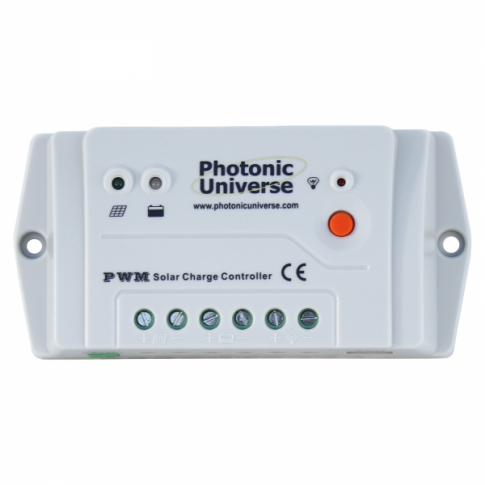

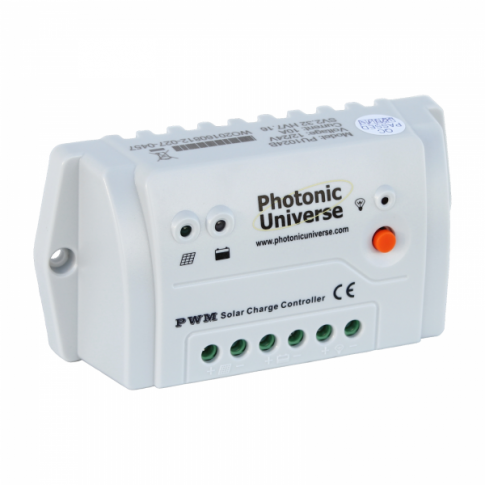

10A solar panel charge controller / regulator 12 / 24V for camper / caravan / boat

This high quality, brand new, powerful 10A 12V/24V solar charge controller is designed to protect batteries whilst charging them, with automatic cut off to prevent over-charging and deep discharge. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and prolongs the life of your battery. Often PWM technology can recover some lost battery capacity.

This controller stops reverse current at night (from the battery back to the solar panel) so your battery won't lose any charge. It has many other protection functions such as over charge / discharge, over load, short circuit, overheating etc. Other features of this controller include LED indicators, temperature sensor, and a load "on/off" button. One of the greatest benefits of this powerful 10A controller is the small size - only 14 x 7cm.

This controller can work with sealed, gel, and flooded batteries (the default is sealed) or a user-defined battery type (please note battery type can only be changed from default using one of the communication methods listed below). The controller can accept up to 160W (12V battery) / 320W (24V battery) of solar power input, which makes it a perfect choice for small or medium solar PV systems with a battery and load; such as in a campervan or boat.

This model also features advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller through various methods:

1) The controller can be connected to a remote meter MT50 with an LCD screen, which displays system performance information and allows the user to manually adjust parameters and load settings

2) An RJ45 to USB cable can be used to connect the controller directly to your PC / laptop, where parameters and settings can be monitored and adjusted via a free computer program - Solar Station Monitor (Windows-based PCs and laptops only).

Using one of these communication methods, the user will gain access to various charging parameters such as voltage, current (separately for solar panel / load), battery state of charge, accumulated charge and discharge energy, min/max voltage and other information. If required the user will also be able to amend the battery type and capacity, set charging volts for different charging stages, specify the duration of each charging stage, create a user-defined battery type with charging parameters specific to their battery (if the pre-existing options are unsuitable), personalise the 'load' settings (e.g. set timers for lighting, fans, pumps) and more.

In addition to the built-in temperature sensor, the controller has a pair of terminals for connecting a remote temperature sensor, which can be attached directly to the battery to measure the battery temperature more precisely and optimise the charging process.

Click on the Details and Specifications tab for more information about this product.

Controller specifications:

• Rated current 10A
• Fully automated operation and auto 12/24V selection
• Wide solar input voltage range up to 50V
• 3 pairs of terminals (input, battery, output)
• LEDs to indicate charging, battery and load
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Over load protection (≥1.05 times the rated discharge current)
• Short circuit protection (≥2 times the rated discharge current)
• Over charge / discharge, overheating and other protection features
• Self-consumption: ≤ 8.4mA (12V) / ≤ 7.8mA (24V)
• Working temperature: -35C to +50C
• Terminals for wires up to 4mm2
• Size: 13.8 x 6.9 x 3.7 cm
• Weight: 130 g
• Multiple mounting holes for ease of installation

This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.

This product comes with an instruction manual which explains connections and operations.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

You can download the following documents for this product:

User manual for PU1024B Photonic Universe 10A 12V/24V automatic solar charge controller
