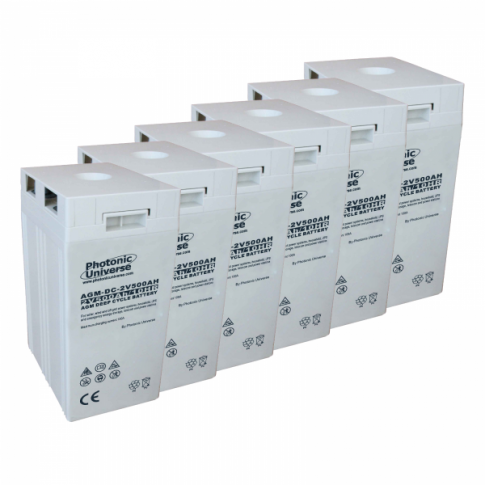

12V 500Ah AGM deep cycle battery bank (6 x 2V batteries) for large power systems and energy storage

12V 500Ah AGM deep cycle battery bank (6 x 2V batteries) for large power systems and energy storage

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

6kWh 12V 500Ah battery bank - comprised of 6 x 2V AGM batteries and metal connectors. Ideal for large off-grid power systems and for household/ emergency energy storage.

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.



Photonic Universe is proud to offer this advanced 12V 500Ah battery bank, comprised of 6 x 2V high quality AGM batteries and complete with metal plate connectors for instant connection.

Benefits of 2V battery connection:

This battery bank features 2V batteries, offering important advantages over battery banks made up of 12V batteries. These include:

Significantly improved longevity: These 2V batteries are connected in series, as opposed to 12V battery banks which require a complex combination of series and parallel connections. By connecting exclusively in series, each 2V battery is charged and discharged at an even rate. Thanks to these stable and balanced charging cycles, this battery bank has a considerably longer service life than any bank consisting of 12V batteries.

Deeper discharge capability: The thicker metal plates inside these 2V batteries allow more energy to be drawn from the bank than if it were comprised of 12V batteries.

Suitable applications:

The long service life and improved depth of discharge of this battery bank make it ideal for applications requiring constant, reliable and powerful energy supply. Such applications include, but are not limited to:

- Large power systems for motorhomes, caravans and boats
- Solar, wind and hybrid energy systems
- Household off-grid power systems
- Emergency or back-up UPS systems
- Energy storage for telecommunications or networking equipment
- Power stations

Benefits of AGM batteries:

This battery bank features 6 x AGM (Absorbed Glass Mat) batteries. In AGM batteries, all electrolyte is absorbed into a special sponge made of glass fibre. Important benefits of AGM batteries include:

- Maintenance free: No need for liquid or electrolyte top up.
- Extremely safe: Non-spillable and completely sealed, with protective covering of the terminals.
- Long service life: Longer-lasting than standard wet-cell batteries due to less degradation and corrosion inside the battery.
- Low self-discharge rate: AGM batteries are less prone to sulphation and hold charge for longer than flooded batteries.
- Highly resilient: Good resistance to shock and vibration.

This battery bank is supplied with a detailed user manual and metal plate connectors to link the batteries together.

Click on the Details and Specifications tab for more information.

Details & Specification

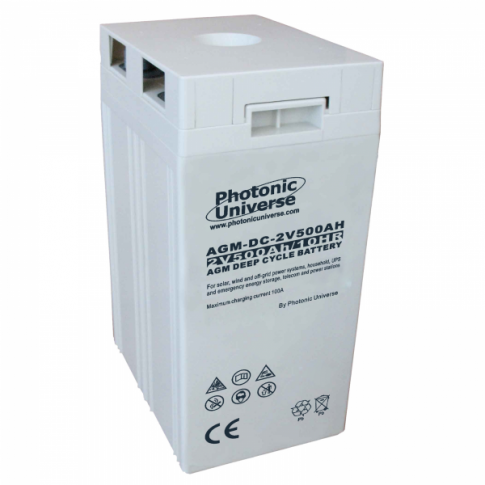

Specifications (per 2V battery):

  • Nominal voltage: 2V
  • Nominal capacity: 500Ah (10h rate) / 508Ah (20h rate)
  • Maximum charging current: 100A
  • Cycle lifetime at 30% D.O.D.: 1200
  • Pressure control: safety valve installed
  • Terminal type: M10 bolts
  • Operating temperature: from -10C to +40C
  • Supplied with metal plate connectors
  • Size: 242 x 174 x 365 mm
  • Weight: 27 kg


Specifications (entire 12V battery bank):

  • Nominal voltage: 12V
  • Nominal capacity: 6kWh
  • Maximum charging current: 100A
  • Charging voltage: cycle use 14.1V, standby use 13.7V
  • Temperature compensation: cycle use -30mV/°C, standby use -18mV/°C
  • Size: 1150 x 250 x 370 mm
  • Weight: 170 kg


This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.




This product is supplied with a user manual which contains detailed information regarding connection, operation and installation.
