20W 12V solar charging kit with 5A solar controller and battery cable with crocodile clips

20W 12V solar charging kit with 5A solar controller and battery cable with crocodile clips

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

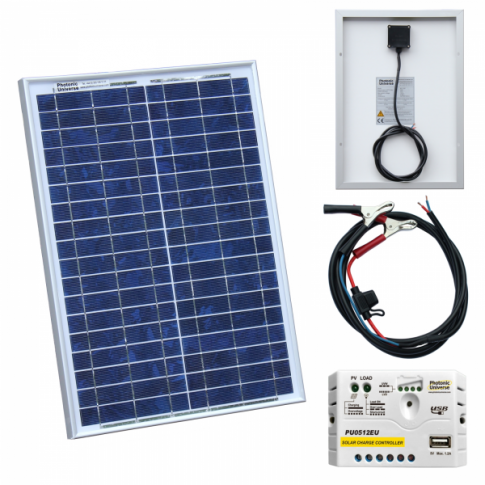

20W 12V solar charging kit which includes a high efficiency 20W 12V polycrystalline solar panel with 3m cable, an advanced 5 Amp solar charge controller and 2m battery cable with crocodile clips and a fuse

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.

Overview



This 20W solar charging kit includes:

  • High efficiency 20W polycrystalline solar panel with 3m cable
  • Advanced 5A solar charge controller with USB charging port and battery protection functions
  • 2m battery cable with crocodile clips and a fuse
  • User manual with installation instructions

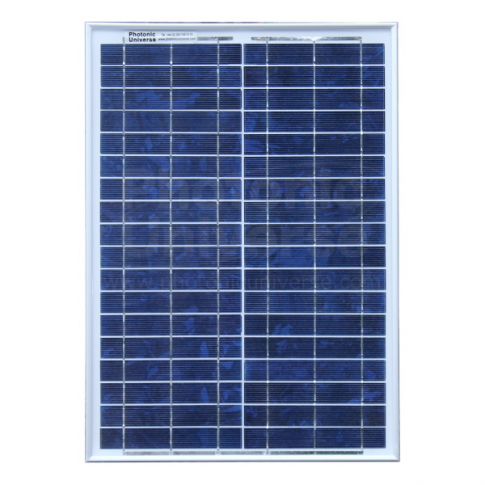

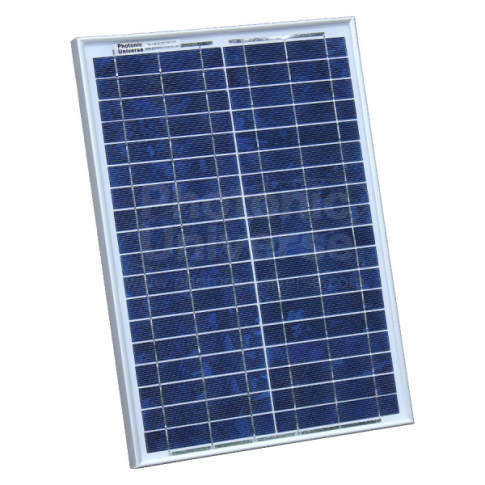

20W solar panel:

This kit includes a waterproof high efficiency 20W solar panel which is perfect for permanent outdoor use to provide free power for charging a 12V battery to then power various devices for many applications (e.g. 12V lights, fan, water pump, electric fence etc). The kit can also be used to charge a leisure battery in a camper, caravan or boat.

The long-lasting, high-efficiency, polycrystalline cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

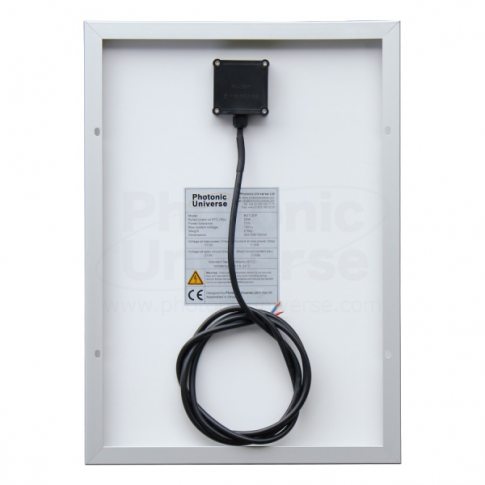

The panel comes with 3m cable which is attached to the waterproof junction box at the back. Please note that the junction box protrudes approximately 0.5cm beyond the frame, which means that there must be some space left between the frame and flat surface when mounting the panel (note 1.0 - 1.5cm space under the panel is typically recommended for cooling).

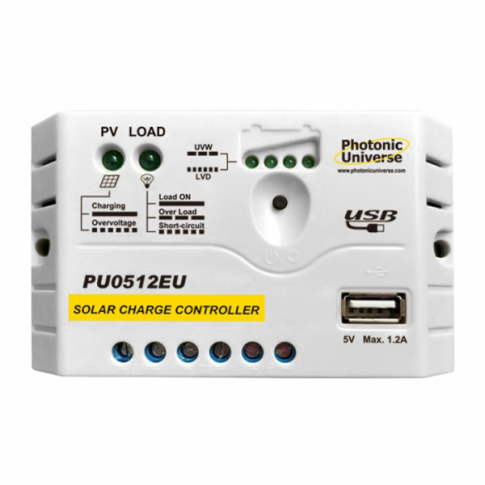

5A solar charge controller:

This kit includes an advanced 5A solar charge controller designed to protect your 12V battery whilst charging it. This advanced controller has a 5V USB port (1.2A output) offering fast charging of USB compatible devices (e.g mobile phones, tablets, mp3 players etc) as well as a pair of load terminals for connecting 12V loads (such as lights) if desired.

The controller can work with sealed, gel and flooded batteries - the battery type can be easily set. The unit also has a pair of terminals for connecting your 12V loads if necessary (such as lights etc).

This solar controller stops reverse current at night (from the battery back through the solar panel) so your battery won't lose any charge. It has many other protection functions such as over charge / discharge, over load, short circuit, overheating etc. Other features of this controller include LED indicators, battery type switch and load "on/off" button.

Additional items:

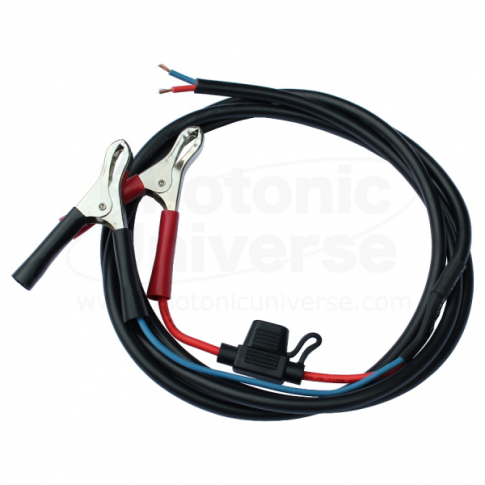

The solar kit also includes 2m battery cable with a fuse and crocodile clips for ease of connection to your battery. A user manual is provided with the solar kit which contains instructions for a quick and safe installation. Advanced users will also benefit from an additional user manual for the solar controller (see documents tab).

Click on the Details and Specifications tab for more information.

Details & Specification



Solar panel specifications:

  • Peak power: 20W
  • Maximum power voltage: 17.5V
  • Maximum power current: 1.14A
  • Open circuit voltage: 21.6V
  • Short circuit current: 1.23A
  • Power allowance range: +/- 3%
  • Dimensions: 485 x 345 x 25 mm
  • Weight: 2.0 kg
  • 4 mounting holes
  • 3m cable attached



Charge controller specifications:

  • Charging current: 5A
  • Load current: 5A
  • Rated voltage: 12V
  • LEDs to indicate battery state of charge, solar panel and load status
  • Self-consumption: 12V ≤5mA ;  24V ≤7mA
  • Working temperature: -35C to +55C
  • USB Interface: 5V DC / 1.2A
  • 3 pairs of terminals (solar panel, battery, load) for wire up to 2.5mm2
  • Size: 109.7 x 65.5 x 20.8 mm
  • Weight: 90 g
  • 2 x 4.5mm mounting holes



This product is covered by a 1 year warranty (workmanship warranty on the solar panel is provided by Photonic Universe, solar charge controller warranty is provided by the solar controller manufacturer). For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.



Installation



A user manual is included with the solar kit which contains instructions for a quick and safe installation. Advanced users will also benefit from an additional user manual for the solar controller (see documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
