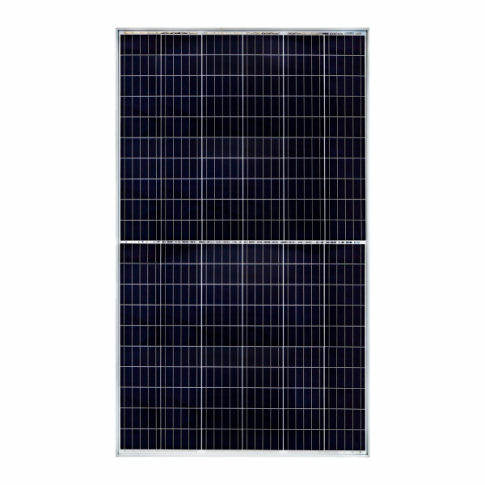

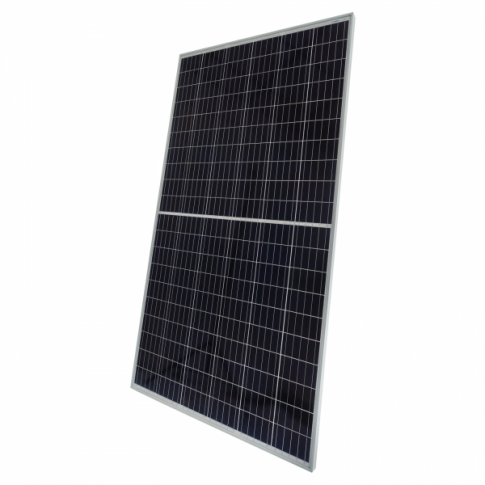

330W Sharp NU-JC Monocrystalline Solar panel with high-efficiency PERC cells

Photonic Universe are proud to present this high quality 330W solar panel from leading solar manufacturer Sharp, who have over 60 years of experience with solar technology and over 50 million solar panels installed all over the world.

This MCS certified panel is perfect for a wide variety of applications, from grid-tie household systems to off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high Wattage array needs to be minimised.

High efficiency solar cells use PERC technology with 5 busbars to extract more power from a smaller surface area, increasing the output of the panel without increasing the size. Half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions.

The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions. A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system.

With a 15-year workmanship guarantee and 25-year output guarantee, you can be confident in the quality, durability and longevity of this premium solar panel.

Click on the Details and Specifications tab for more information.

Specifications:

• Peak power: 330W
• Maximum power voltage: 34.27V
• Maximum power current: 9.63A
• Open circuit voltage: 41.32V
• Short circuit current: 10.35A
• Power tolerance: 0/+5%
• Dimensions: 1,684 x 1002 x 40 mm
• Weight: 19.5 kg
• Mounting holes for ease of installation

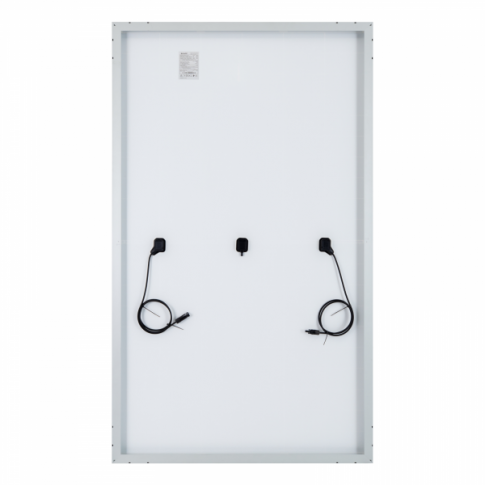

• 2x 1.2m of high-quality single core solar cable
• Male and female MC4 waterproof connectors

The product is covered by a 15 year workmanship warranty provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 97.5% of nominal power in the first year after purchase and less than 0.7% degradation of nominal power each year after until 25 years after purchase, for a minimim of 80.7%.

Full warranty documentation can be found in the Documents tab. For more information please refer to our Terms and Conditions.

This solar panel does not include an installation manual as it must be connected to further devices such as a solar charge controller or inverter which are supplied with a manual.

Please note: if the application of this solar panel is to charge batteries, it is essential that this solar panel is used with a suitable solar charge controller. We recommend the following types of solar charge controllers:

• For 12V batteries, a high efficiency MPPT solar charge controller rated at 30A or higher
• For 24V batteries, a high efficiency MPPT / or standard PWM solar charge controller rated at 20A or higher

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Brochure for Sharp Energy Solutions

Datasheet for Sharp NU-JC 330W monocrystalline solar panel (SRP-330M)

Guarantee for Sharp NU-JC 330W monocrystalline solar panel (SRP-330M)

Installation Guide for Sharp NU-JC 330W monocrystalline solar panel (SRP-330M)
