400W 12V hybrid wind MPPT charge controller with 200W solar input and LCD display

400W 12V hybrid wind MPPT charge controller with 200W solar input and LCD display

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

Hybrid wind MPPT and solar PWM charge controller with LCD display for 12V systems, for up to 400W of wind power and 200W of solar power, combined or stand-alone.

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.

Overview



Photonic Universe is proud to offer this truly advanced hybrid wind and solar charge controller, which uses a highly efficient wind power conversion technology. This product is the result of many years of research and development by an expert team of specialised wind power engineers.

This charge controller is designed to charge a 12V battery bank using energy generated from wind turbines and solar panels. It is ideal for hybrid power systems consisting of both a wind turbine and solar array, as it can accept simultaneous input of up to 400W of wind power (MPPT) and 200W of solar power (PWM). Alternatively, it can be used as a stand-alone controller for wind or solar only.

The controller uses MPPT boost charging technology to unlock the full potential of your wind power system, ensuring optimal performance. The wind charging circuit is equipped with cutting-edge power tracking and voltage-boosting features, achieving the maximum available power from the wind turbine even in low-wind conditions. It also comes with a turbine braking function to protect the wind turbine and the battery during high winds.

Key Features

  • Low Wind Boost Charging: During periods of low wind speed the voltage output of your turbine may be below the charging threshold of your battery. This innovative boost type controller can raise the voltage of the turbine to ensure it can keep charging a 12V battery from wind turbine voltage as low as 2V.
  • Hybrid Capability: The built in PWM solar charger allows this controller to work with both solar panels and wind turbines, eliminating the need for separate controllers. It can also be used as a stand-alone wind (MPPT) or solar (PWM) controller and allows for easy transition to a hybrid system.
  • High Efficiency MPPT Charging: Using advanced Maximum Power Point Tracking (MPPT) technology, the controller optimises wind turbine performance by tracking the ideal power voltage point, maximising power output. It also allows the user to enter their own tracking points of the wind power curve if required.
  • Comprehensive Safety: The controller offers multiple protection functions, including safeguards against reverse current backflow, overvoltage, overload, output short-circuit, and high wind speeds. It also features automatic braking to prevent overcharging and turbine damage.

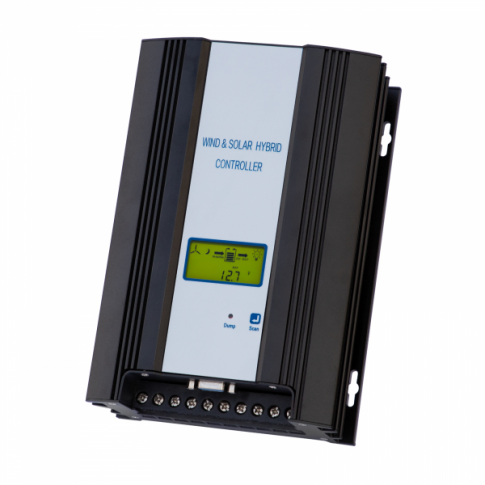

  • User-Friendly Interface: The controller's digital LCD display provides essential information like battery voltage, charging current, connection status of the wind turbine and solar array, daytime/nighttime detection, and battery charging/discharging status. It also alerts you to any system faults or abnormal values, such as low battery voltage or high load current.
  • Load Control: The unit features two pairs of dedicated load terminals (10A rated) which can be programmed with various timer functions. Both load outputs can be set in seven modes, such as light control on/off, light control on and time control off.
  • Advanced Software Configuration: The charge controller can be configured using dedicated free software (Windows only), which connects through an RS232 port. The software allows the user to set many parameters such as charging and disconnect voltages, wind turbine overcurrent, wind turbine start voltage, wind braking settings, as well as to access monitoring and historical data.



Compatibility

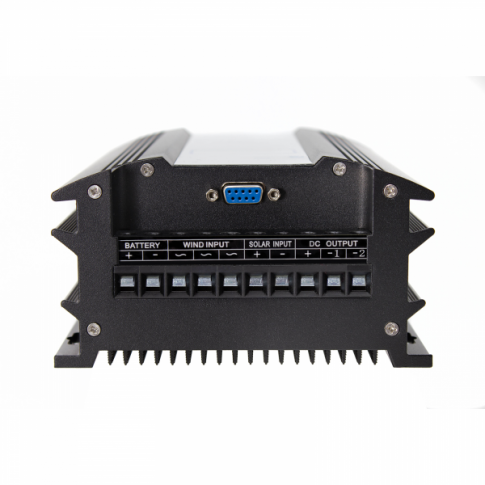

This hybrid charge controller is compatible with 12V wind turbines with DC or 3-phase AC output, and 12V solar panel arrays.

Click on the Details and Specifications tab for more information.

Details & Specification



Specifications:

  • Battery voltage: 12V
  • Maximum wind input power: 400W
  • Wind input voltage range: 2V – 16V
  • Maximum wind input current: 34A
  • Maximum solar input power: 200W
  • Maximum solar open circuit voltage: 24V
  • Maximum solar input current: 17A
  • Two DC outputs with voltage range: 10.8V – 16V
  • Rated current of DC outputs: 10A/each
  • Overload protection: 120% rated current – 1min, 150% rated current – 10s
  • No load self-consumption: <0.6W
  • Ambient temperature: -20ºC to +40ºC
  • Humidity: 0 – 90% (non-condensing)
  • Controller dimensions (including mounting edges): 150 x 220 x 83 mm
  • Controller weight: 2.3 kg



This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.



Installation



This product comes with a user manual which explains connection and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

Please note that if you are planning to use the programming software and your computer doesn’t have an RS232 port, you will need to purchase a suitable RS232-to-USB adapter separately.
