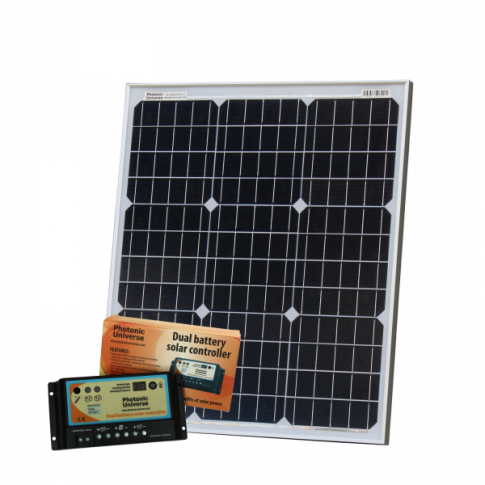

50W 12V dual battery solar kit for camper, boat, yacht with controller and cable

50W solar panel:

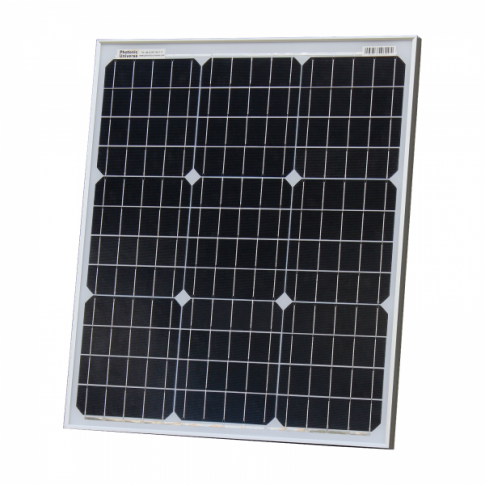

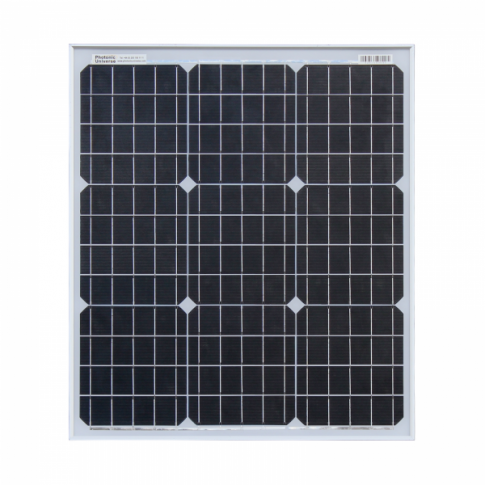

This high efficiency, waterproof 50W 12V monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications such as in a camper van, motorhome, boat, shed, farm, as well as remote applications such as telecommunications or monitoring equipment. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps).

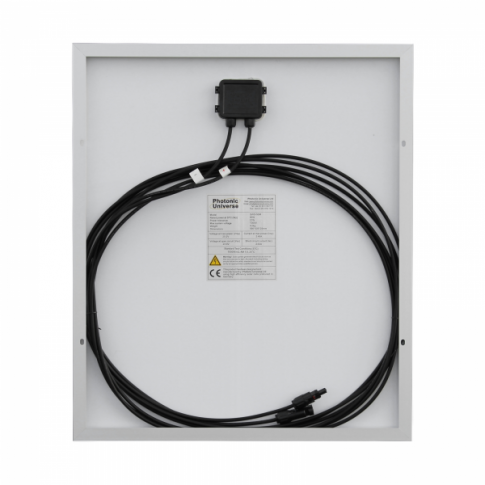

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, extension leads or to your existing system (the MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller).

The long-lasting, high-efficiency monocrystalline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures the panel can be used in all weather conditions.

This panel also features innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures.

10A solar charge controller:

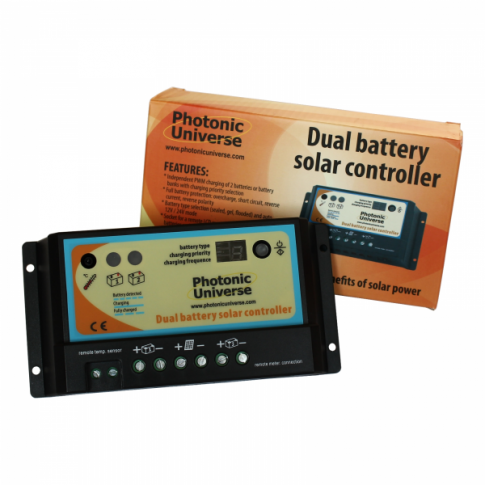

The kit includes a 10A 12V/24V dual battery solar charge controller designed to charge and protect two batteries independently, with automatic cut off to prevent over-charging. The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and prolongs the life of your batteries. PWM technology can also recover some lost battery capacity

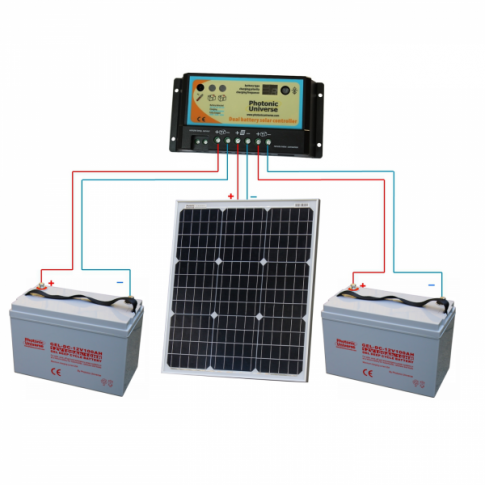

This is a perfect solar controller for a caravan / camper van / boat or another system with two batteries (e.g. engine and leisure battery) or battery banks. You can set the initial charging priority e.g. 80% power to go to the engine battery and 20% to leisure battery. When one of the batteries is fully charged the controller will automatically divert all power to the other battery.

Can the unit work with only one battery? Yes, absolutely! The controller will determine automatically if there's only one battery connected and will pass 100% of charging current to this battery. You can add a second battery later.

The unit has many protection functions, such as stopping reverse current at night (from the battery back to the solar panel), over charge, short circuit, reverse polarity etc. Other features include various LED indicators, battery type selection (sealed, gel, flooded) and an RJ-45 socket for an optional remote LCD meter with 10m cable.

A built-in temperature sensor allows the controller to optimise the charging process depending on the ambient temperature. If you are planning to position the controller far away from the battery, or if the battery and the controller are exposed to different ambient temperatures, an external remote temperature sensor with 3m cable is recommended for this dual battery solar charge controller. To enable connection to the screw terminals of the controller, the green connector block on the end of the remote temperature sensor cable should be cut off.

This controller can work with solar panels up to 160W, which means that it has enough reserve capacity to add up to two more 50W solar panels to your system at a later date, without the need to change the controller.

Please note: This is an essentials kit and does not include mounting accessories or battery cable. If you require these additional items, please purchase them separately.

Click on the Details and Specifications tab for more information about this product.

Solar panel specifications:

• Peak power: 50W
• Maximum power voltage: 20.2V
• Maximum power current: 2.48A
• Open circuit voltage: 23.9V
• Short circuit current: 2.63A
• Power allowance range: +/- 3%

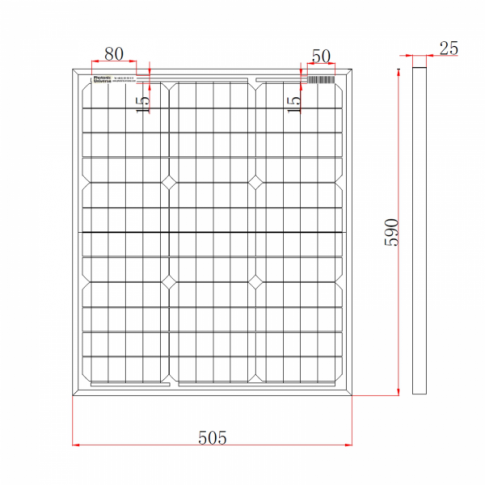

• Dimensions: 590 x 505 x 25mm
• Weight: 4.2 kg

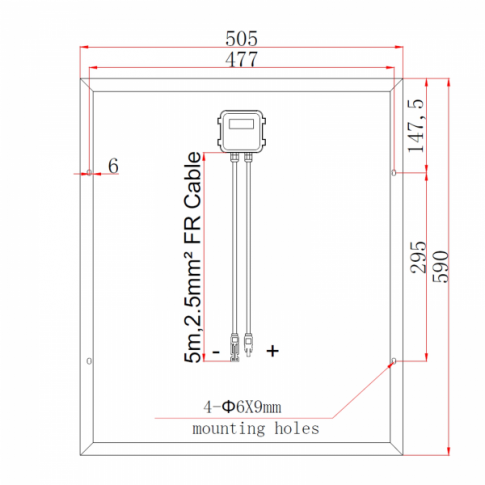

• 4 mounting holes 9 x 11 mm
• 2 x 5m of high quality single core solar cable 2.5mm cross section
• Male and female MC4 connectors attached

Charge controller specifications:

• Fully automated operation and auto 12/24V selection
• 3 pairs of terminals (input, battery 1, battery 2)
• LEDs to indicate state of charge
• Temperature sensor for temperature compensation of charging (-30mV/C/12V)
• Additional connection point for a remote temperature sensor (not included)
• RJ-45 connection point for a remote meter (not included)
• Various protection features (over charge, discharge, short circuit, over load, battery reverse polarity etc)
• Self-consumption: 4mA at night, 10mA when charging
• Working temperature: -35C to +55C
• Terminals for wire up to 4.0mm2
• Size: 15.5 x 7.6 x 4.0 cm
• Weight: 185 g
• Multiple mounting holes for ease of installation

Please note: due to our warehouse arrangements, the solar charge controller may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

This product is covered by a 1 year warranty provided by Photonic Universe (including a 1 year warranty for the solar charge controller and a 1 year workmanship warranty for the solar panel). We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.

For installation advice please click on the Installation tab.

Electrical connection: the solar charge controller included in this kit is supplied with a detailed user manual which contains a wiring diagram and explains installation / operations (see Documents tab). Please ensure that you read the full user manual before starting the installation.

Fitting: the solar panel in this kit can be fitted to a flat roof using metal brackets, plastic brackets or a variety of other methods. To view our full range of brackets, please visit the mounting accessories category of our online shop.

The solar charge controller in this kit is not waterproof and should be mounted indoors.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for DB1024 Photonic Universe 10A 12V/24V automatic solar charge controller
