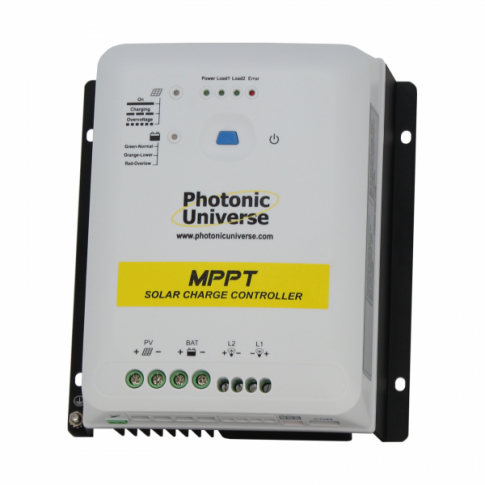

High Efficiency 30A MPPT Solar Charge Controller with Dual Fixed Load Outputs for Solar Panels up to 390W (12V) / 780W (24V) up to 100V

Dual Stabilised 12/24V Load Outputs:

This advanced, voltage-stabilising solar controller has two independent load outputs designed to run equipment from a consistent and low-ripple supply. Additionally, the two outputs can each be set independently to 12V or 24V using a simple toggle-switch - regardless of the battery voltage. This allows running of sensitive equipment, such as CCTV or telecommunications, or multiple appliances with a mix of 12V and 24V inputs from a single off-grid system without needing any additional convertors or stabilisation.

MPPT Technology:

This solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range - this controller can work not only with standard off-grid 12/24V solar panels, but also with multiple panels with voltage up to 100V. The maximum combined input solar power allowed for this controller is 390W for a 12V battery system or 780W for a 24V system. In particular, this controller will significantly increase efficiency of a solar system where the solar panel voltage is much higher than the battery voltage (e.g., charging a 12V battery with a 36V solar panel).

Full system protection:

This charge controller features a comprehensive set of electronic protection functions to ensure the maximum possible efficiency of your solar system. These include: reverse current prevention at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection.  The controller also has self-diagnostic capability and highlights any system errors using advanced fault-targeting technology.

Lithium Battery charging:

This solar charge controller is compatible with LiFePO4 or Li(NiCoMn)O2 Lithium batteries as well as sealed/AGM or gel lead acid batteries. Custom charging voltages can be set as a user-defined battery type (see below for more details).

Advanced system functionality:

• The two load outputs operate independently of the battery voltage, providing a stable DC output that can be manually set to 12V or 24V regardless of the voltage of the battery bank.
• Current limiting function (30A) allows the possibility of adding more solar panels to your solar system in the future.
• The controller automatically recognises 12/24V battery systems (note a battery should always be connected to the controller first before connecting a solar panel) in standard operation.
• Batteryless operation can be set up using the RJ45 to USB cable, to allow the controller to provide a stabilised 12V/24V output directly from the solar panel. See below for more details.

Multiple connectivity options:

This model also features advanced communication technology, which offers the user the opportunity to monitor and program parameters for the solar charge controller through various methods:

1) The controller can be connected to a Wi-Fi module to create a Wi-Fi network, to which your mobile phone or tablet can connect, in order to monitor or adjust charging parameters and controller settings through a free mobile app (available for Android and iOS users).

2) An RJ45 to USB cable can be used to connect the controller directly to your PC / laptop, where parameters and settings can be monitored and adjusted via a free computer program - Solar Station Monitor  (Windows-based PCs and laptops only). If using the RJ45 to USB cable, the user also has the option to create a user-defined battery type with charging parameters specific to their battery (if the pre-existing options are unsuitable) and set up the system for operation without a battery.

Using one of these communication methods, the user will gain access not only to the live charging parameters, but also additional information such as min/max voltages, temperature, protection cut off voltages, diagnostics and other information. If required the user will also be able to amend the battery capacity, set charging voltages for different charging stages, specify the duration of each charging stage, create a user-defined battery type with charging parameters specific to their battery (if the pre-existing options are unsuitable), and more.

In addition to the built-in temperature sensor and intelligent heat-dissipating design of this controller, there is also a socket for connecting a remote temperature sensor, which can be attached directly to the battery to measure the battery temperature more precisely and optimise the charging process. (Inbuilt temperature sensor is not enabled for lithium batteries).

Click on the Details and Specifications tab for more information about this product.

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
• Fully automated operation and auto 12/24V selection
• 4 pairs of terminals (solar panel, battery, load 1, load 2) for wires up to 10mm²
• Maximum solar panel voltage 100V
• Maximum solar panel power 390W (12V) / 780W (24V)
• Temperature sensor for automatic compensation (-3mV/°C/2V)
• Load output power 100W (load 1) / 36W (load 2)
• Load ripple 100mV 200mA
• Comprehensive electronic protection features
• Communication port: RS485/RJ45 interface
• Grounding: negative common ground
• Current limiting function (30A)
• Self-consumption: ≤35mA(12V) / ≤22mA(24V)
• Working temperature: -30°C to +65°C
• Size: 17.8 x 16.2 x 8.01 cm
• Mounting dimension: 12 x 15.3 cm
• Weight:1.5kg
• Multiple mounting holes (5mm diameter) for ease of installation

The product is covered by 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

The unit comes with a detailed user manual which explains wiring and operations (see Documents tab).

The following documents are available to download:

User manual for 30A MPPT solar charge controller with dual fixed load outputs (MSC3210N)
