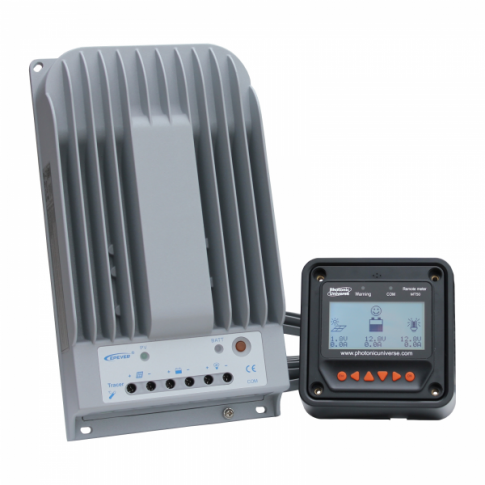

High efficiency 30A MPPT solar charge controller with LCD display and 5m cable for solar panels up to 390W (12V) / 780W (24V) up to 150V

High efficiency 30A MPPT solar charge controller with LCD display and 5m cable for solar panels up to 390W (12V) / 780W (24V) up to 150V

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

High efficiency 30A MPPT solar charge controller / regulator with a remote LCD meter for charging 12V or 24V batteries by solar panels with voltage up to 150V

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.



MPPT Technology:

This solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range - this controller can work not only with standard off-grid 12/24V solar panels, but also with high voltage or multiple panels with voltage up to 150V. The maximum combined input solar power allowed for this controller is 390W for 12V battery system or 780W for 24V system. In particular, this controller will significantly increase efficiency of a solar system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel).

Full system protection:

This charge controller features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection. The controller also has self-diagnostic capability, and will highlight any system errors using advanced fault-targeting technology.

Remote meter / display:

The controller comes with a remote LCD meter with 5m cable. This meter can display various charging parameters such as voltage, current (separately for solar panel / load) and the state of charge of the battery. It can also record accumulated charge and discharge energy, as well as min / max voltage.

Factory default or personalised charging:

This solar charge controller with a meter allows you to either use standard factory settings, or a range of exclusive settings which give you far greater control over your solar system. If you opt for these personalised parameters, you will be able to:

  • Amend the battery type and capacity
  • Select charging volts for different charging stages
  • Specify the duration of each charging stage
  • Create a user-defined battery type with charging parameters specific to your battery (if the pre-existing options are unsuitable)
  • Personalise the load settings - e.g. set timers for lighting, fans, pumps


Additional Features:

This unit can work with sealed, gel, flooded or user-defined lead acid batteries and can automatically recognise 12/24V battery systems (note a battery should always be connected to the controller first before connecting a solar panel).

Current limiting function (30A) which allows the possibilty of adding more solar panels to your solar system in the future

Click on the Details and Specifications tab for more information about this product.

Details & Specification


Controller specifications:

  • The most advanced MPPT technology to ensure high efficiency of your solar system
  • Fully automated operation and auto 12/24V selection
  • 3 pairs of terminals (solar panel, battery, load) for wires up to 16mm
  • Maximum solar panel voltage 150V
  • Maximum solar panel power 390W (12V) / 780W (24V)
  • Temperature sensor socket for automatic compensation (-3mV/C/2V)
  • Comprehensive electronic protection features
  • Communication port: RS485/RJ45 interface
  • Grounding: negative common ground
  • Current limiting function (30A)
  • Self-consumption: <60mA (12V), <30mA (24V)
  • Working temperature: -35C to +55C
  • Enclosure: IP30
  • Size: 28 x 16 x 6 cm
  • Weight: 2.2 kg
  • Multiple mounting holes for ease of installation


Remote meter specifications:

  • Self-consumption: 15-65mA (depending on backlight settings)
  • Operating temperature: -20C to +70C
  • Communication cable: RJ45 (8pin) 5 meters included
  • Wall mounting frame with mounting holes included
  • Size (without frame): 10 x 10 x 3 cm
  • Size (with frame): 12 x 12 x 5 cm
  • Weight: 230 g


The solar charge controller is covered by a 2 year warranty. For more information please refer to our Terms and Conditions.



The product comes with a detailed user manual which explains wiring and operations. Advanced users will benefit from a section in the manual explaining MPPT technology.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
