Pair of battery posts with hex socket head M8 bolts designed for batteries with M8 bolt terminals

Pair of battery posts with hex socket head M8 bolts designed for batteries with M8 bolt terminals

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

Battery posts to enable use of cables with standard car-type battery clamps on batteries with terminals originally designed for eyelets.

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.

Overview



This pair of battery posts are an ideal solution for enabling connection of cables with battery clamps to batteries with terminals originally designed for cables with ring terminals / eyelets, such as our AGM or Gel batteries.

If you have a battery with terminals designed for connecting cables with metal eyelets, you can simply remove the bolts from the battery terminals and attach these posts. This enables you to connect any existing cables with standard car battery clamps on the end, to the battery.

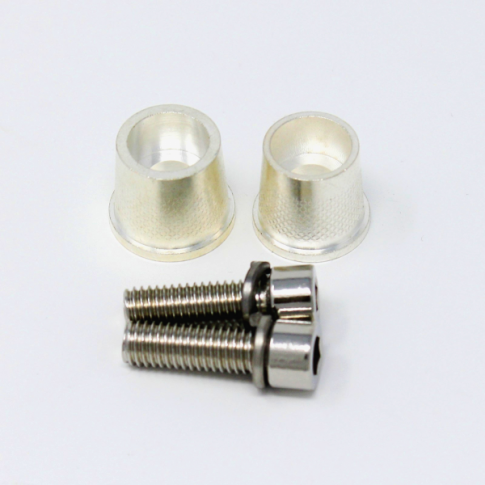

These posts come with M8 bolts (32mm long), with heads for a 6mm hex key, and are designed for use with batteries with corresponding M8 terminals. The positive post is slightly bigger to ensure polarity can be observed and maintained easily.

Click on the Details and Specifications tab for more information



Details & Specification



Specifications:

  • Bolt thread: M8
  • Hex head of bolt: 6mm
  • Length of bolt: 32mm
  • Height of post: 20mm

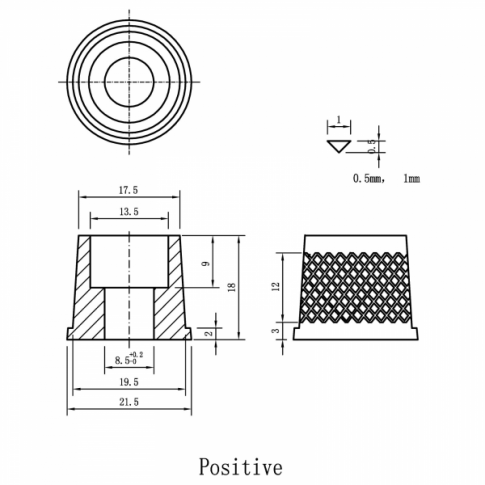

  • Bottom diameter of positive post: 21.5mm
  • Top diameter of positive post: 17.5mm

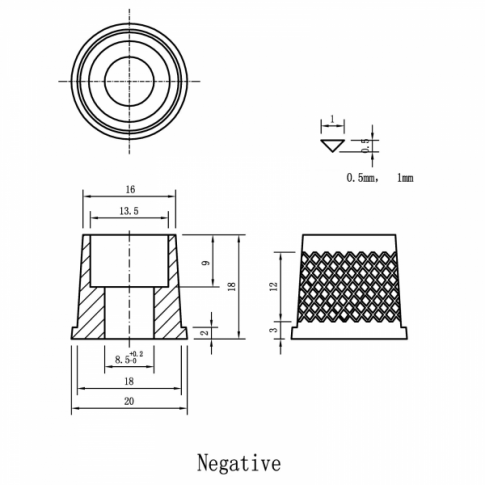

  • Bottom diameter of negative post: 20mm
  • Top diameter of negative post: 16mm
