Parallel connection kit for Iconica 48V KMS or ZT series hybrid pure sine wave inverters

Parallel connection kit for Iconica 48V KMS or ZT series hybrid pure sine wave inverters

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

Kit for connecting Iconica 48V hybrid inverters together in parallel - either KMS series inverters(4000W and 5000W models) or ZT series inverters

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.

Overview

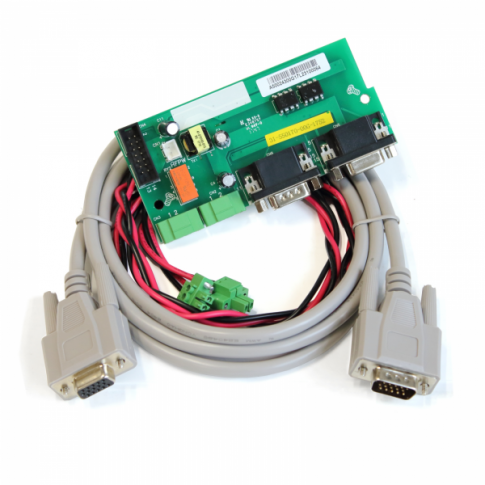

This parallel connection kit includes all of the parts required for connecting multiple identical 48V Iconica inverters together in parallel. Compatible models include:

The kit includes:

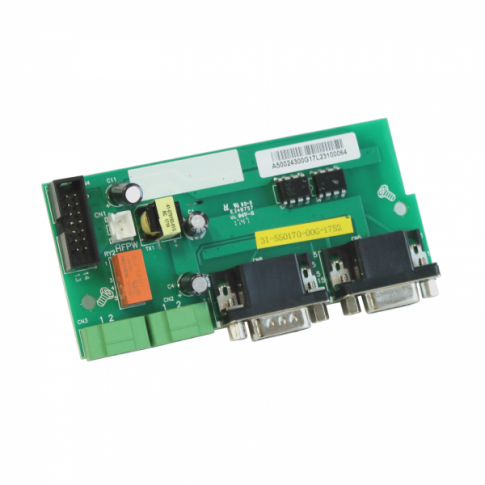

  • 1 x Circuit board

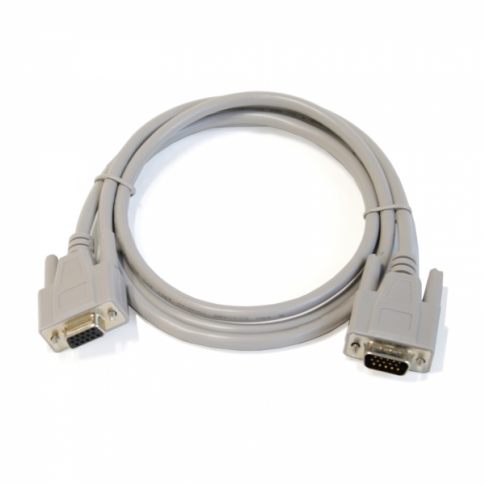

  • 1 x Communication cable

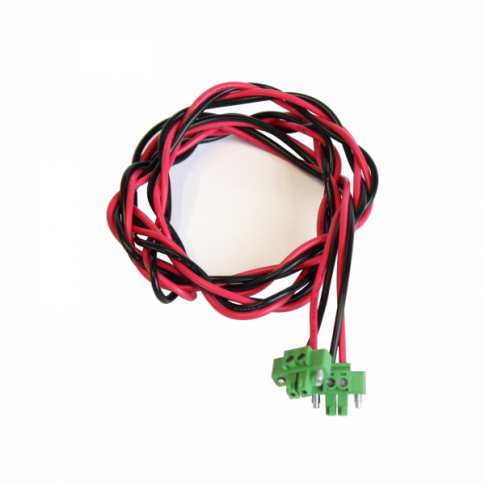

  • 1 x Current sharing cable



A maximum of nine Iconica KMS or ZT series inverters can be connected together to increase the total system power handling capability. Once connected in parallel, the inverters can be set to either single phase or three phase operation mode, typically used for running industrial equipment.

This parallel kit is suitable for linking identical Iconica 48V 4000W-5000W KMS series inverters OR Iconica 48V ZT series inverters in parallel. Please note this kit is not compatible with any other inverter from the Iconica range.

Connection of additional inverters is very simple and full instructions can be found in the detailed user manual supplied with this parallel connection kit.

Please note: One parallel connection kit is required per Iconica inverter. For example, if connecting two inverters together, two connection kits are required.

Click on the Details and Specifications tab for more information.

Details & Specification



Specifications:

  • Compatible with identical 48V KMS series Iconica Hybrid inverters (4000W or 5000W) or Iconica 48V ZT series inverters
  • 1 x circuit board
  • 1 x communication cable
  • 1 x current sharing cable



Installation



This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
