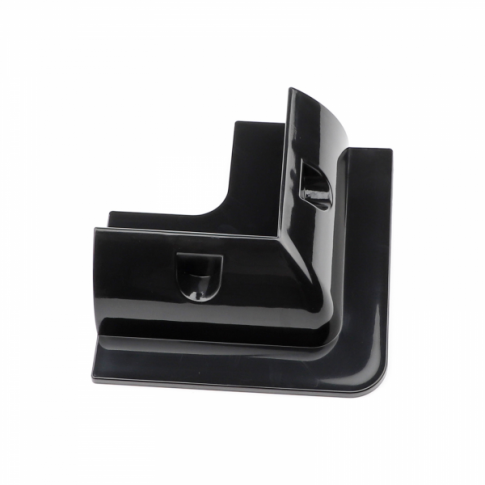

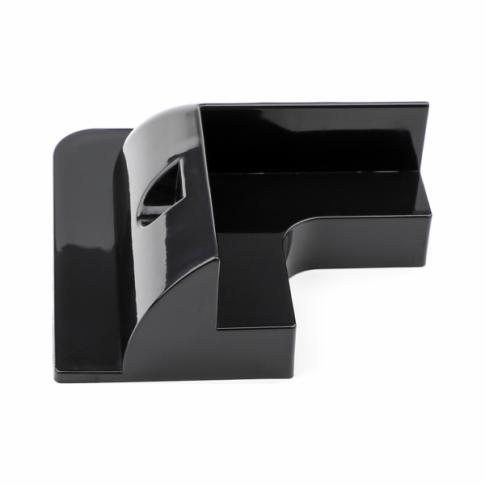

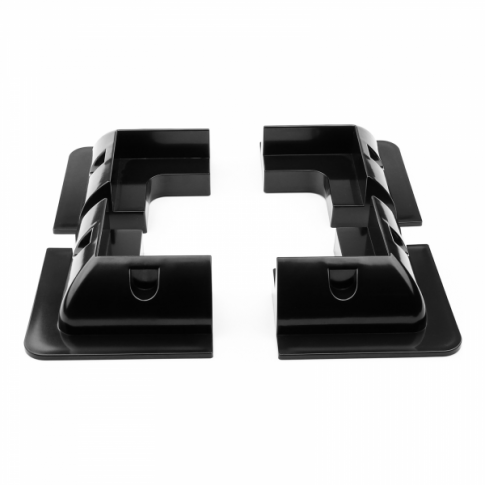

Set of 4 lightweight black plastic corner mounting brackets for campervan, caravan, motorhome, boat or any flat roofs and surfaces

Features and benefits:

• Lightweight and ideal for bonding to the roof
• Strong and secure fitting for small and large solar panels
• Great for motorhomes, campervans, caravans, trucks, buses, boats and yachts
• Can also be used on flat roofs of buildings, sheds, garages or other flat surfaces
• Suitable for all Photonic Universe rigid frame solar panels and most other rigid frame solar panels

This is a set of 4 black plastic corner mounting brackets for fixing solar panels to vehicles, boats, roofs of buildings and other flat surfaces.

They are ideal for all Photonic Universe solar panels and can be used with most other rigid-frame solar panels. For large solar panels with the length over 1m, especially when fitting them to high-speed vehicles, additional side brackets are recommended (product code SDSH_BR_LB).

Click on the Details and Specifications tab for more information

Specifications:

• Material: plastic
• Colour: black
• Size (1 bracket): 15.0 x 15.0 x 5.9 cm
• Solar panel clearance above the surface (when mounted): 2.6 cm
• Additional mounting space required around the solar panel corner: 6.0 cm on each side
• Weight: (4 brackets): 0.7kg

Installation is easy: 2 holes should be drilled in each bracket, and the corresponding smaller holes in the solar panel frame on each side; then the brackets should be fixed to the solar panel using self-tapping screws (not included). The bottom surface of the brackets should be sanded with a suitable sand paper prior to gluing (as well as the mounting surface if applicable), and then the brackets can be glued to the roof using an appropriate sealant. Additional screws can be used for strength and security of fixing; if used, it is recommended to fully cover those screws in sealant on top and under the brackets to keep the surface waterproof.
