Victron Energy Lynx Distributor DC busbar with fuse monitoring 1000A 12V/24V/48V

Victron Energy Lynx Distributor DC busbar with fuse monitoring 1000A 12V/24V/48V

Trade Pricing AvailableLearn More
Quality Solar Panels for Caravans & Motorhomes
FREE electricity generation for your caravan or motorhome
FREEDelivery in the UK mainland

The Lynx Distributor is a modular DC busbar with 4 fuse-protected connections, fuse monitoring capability and a ground connection. It monitors the status of each fuse and indicates its condition using the LEDs on the front.

SPECIAL NOTICE : If you are purchasing this part for a self build project, please see our terms & conditions. FULFILLED BY PHOTONIC UNIVERSE : This product is fulfilled by Photonic Universe, our Solar partner.

Overview



Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power charging solutions. Victron Energy products and accessories have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

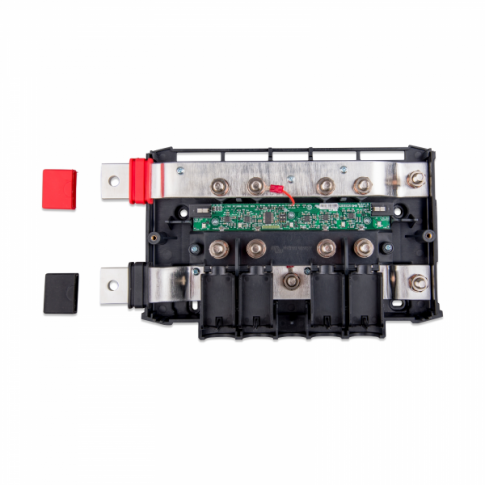

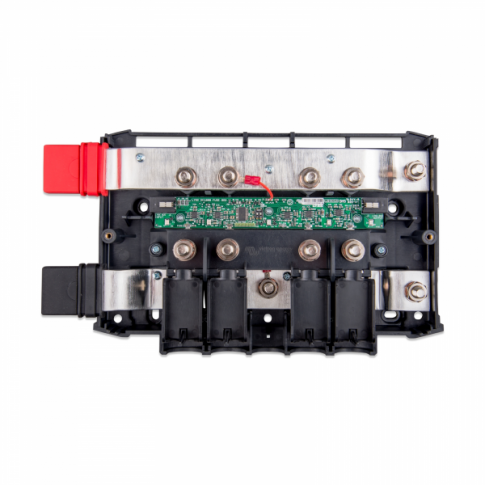

This Victron Energy Lynx Distributor, part of the Lynx distribution system, is a modular DC busbar unit made up of a positive and a negative busbar, with a nominal current rating of 1000A. The positive busbar has 4 fuse-protected connections with fuse monitoring capability, whereas the negative busbar has four connections and a ground connection.

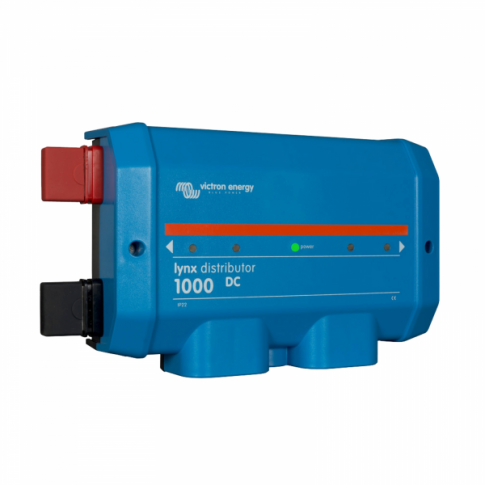

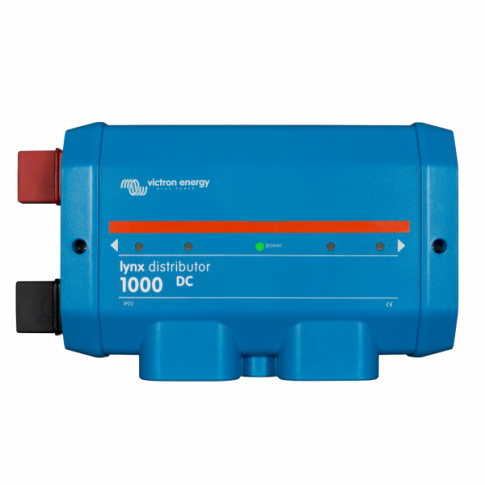

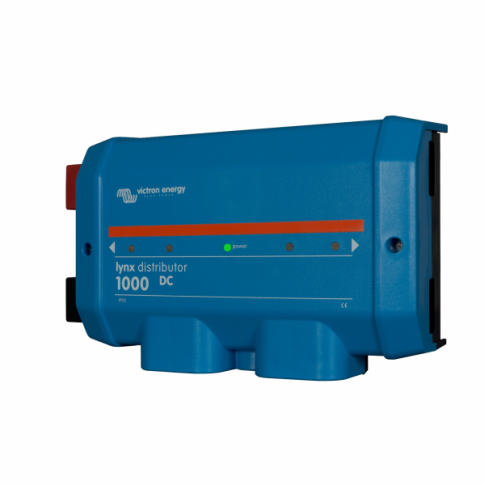

The Lynx Distributor monitors the status of each fuse on the positive busbar and indicates its condition using the LEDs on the front. It has one power LED and four fuse status indication LEDs. If and when a fuse blows, the red fuse LED will illuminate and the power LED will turn red.

Please note that the Lynx Distributor is designed to hold MEGA fuses. These will need to be purchased separately.

Depending on the desired outcome, the Lynx Distributor can be used by itself or in combination with other Lynx distribution system modules (not included) such as:

Multiple Lynx Distributors or a Lynx Distributor with optional modules above can be connected in series together to extend the fusing and distribution busbar if needed.

Lynx Distributor does not have an in-build power supply to operate its fuse detection circuit; it relies on this power to be supplied from a Lynx Shunt via the RJ10 cable. Therefore, for standalone use, if the Lynx Distributor is used without a Lynx Shunt, it will need to be powered in an alternative way so that the fuse detection circuit is operational. The RJ10 cable (included) can be used to connect the Lynx Distributor to an external 5V (4.5V – 5.5V) DC source. If the fuse detection circuit is not needed, Lynx Power In module can be used instead.

Click on the Details and Specifications tab for more information.

Details & Specification



Technical Specifications:

  • Voltage range: 9 - 60Vdc
  • Supported system voltages: 12, 24 or 48V
  • Reverse polarity protection: Yes (Please note: RJ10 cable connection is not protected against reverse polarity)
  • Current rating: 1000A
  • Power consumption: Maximum 100mA (with all LEDs illuminated)
  • Busbar connection: M8
  • Fuses connection: M8
  • Enclosure dimensions: 290 x 170 x 80 mm
  • Unit weight: 2.2 kg
  • Busbar material: Tinned copper
  • Operating / storage temperature: -40°C to +60°C
  • Humidity: Max. 95% (non-condensing)
  • Protection class: IP22



This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
