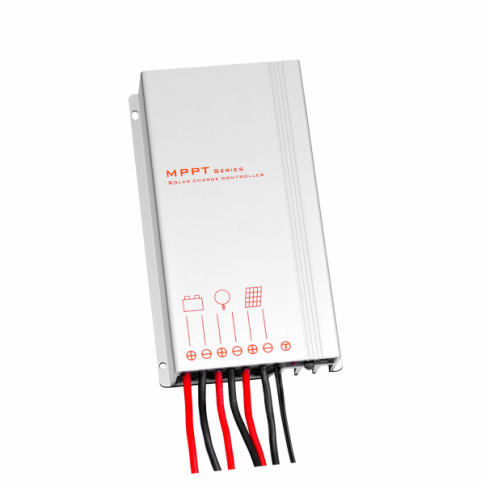

Waterproof 15A 12V/24V MPPT solar charge controller / regulator for caravans, motorhomes, campervans, boat, yacht and marine applications

This high quality waterproof 15A 12V/24V solar charge controller is designed to protect batteries whilst charging them, with a full range of automatic protection features. The controller uses high efficiency MPPT charging technology to get the most possible power out of your solar panels.

This controller stops reverse current (from the battery back to the solar panel) so your battery won't lose any charge at night and can be left permanently connected. It has many other protection functions such as over charge / discharge shut-off, over load and short circuit protection for the load terminals, overheating protection for the battery and more.

This controller can work with sealed/AGM, gel and flooded/wet batteries. With a wide range of solar input voltages (up to 55V) this controller can work not only with standard off-grid solar modules, but also with on-grid panels which have higher voltage. The controller can accept up to 200W (in a 12V system) or 400W (in a 24V system) of solar panels which makes it a perfect choice for small or medium solar PV systems with a battery and load such as in a camper van or boat.

In addition, the solar charge controller is completely sealed with a very high degree of water protection. It is absolutely safe to use this solar controller in all weather conditions.

With the remote IR programmer (purchased separately), this controller can be wirelessly monitored and adjusted. The controller has a fully programmable timer with dimmer functionality, which monitors the dusk and dawn times based on the solar panel voltage and can adjust the percentage power of the load in 5 independently-timed stages, making this controller ideal for outdoor lighting systems.

Click on the Details and Specifications tab for more information about this product.

Controller specifications:

• Protection rating: IP67
• Default charging program: Gel
• Current rating: 15A
• Max solar input power: 200W (12V system) / 400W (24V system)
• Max solar input voltage: 55V
• Self-consumption: 6mA
• Ambient conditions: -35 – +60°C, 0 – 100% RH humidity, <4000m altitude
• Dimensions: 85.8 x 145 x 30 mm
• Weight: 600g
• Mounting holes for ease of installation

The product is covered by 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

The product comes with an instruction manual which explains connections and operations.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

You can download the following documents for this product:

User manual for LUX1524WP Photonic Universe 15A 12V/24V waterproof MPPT solar charge controller
